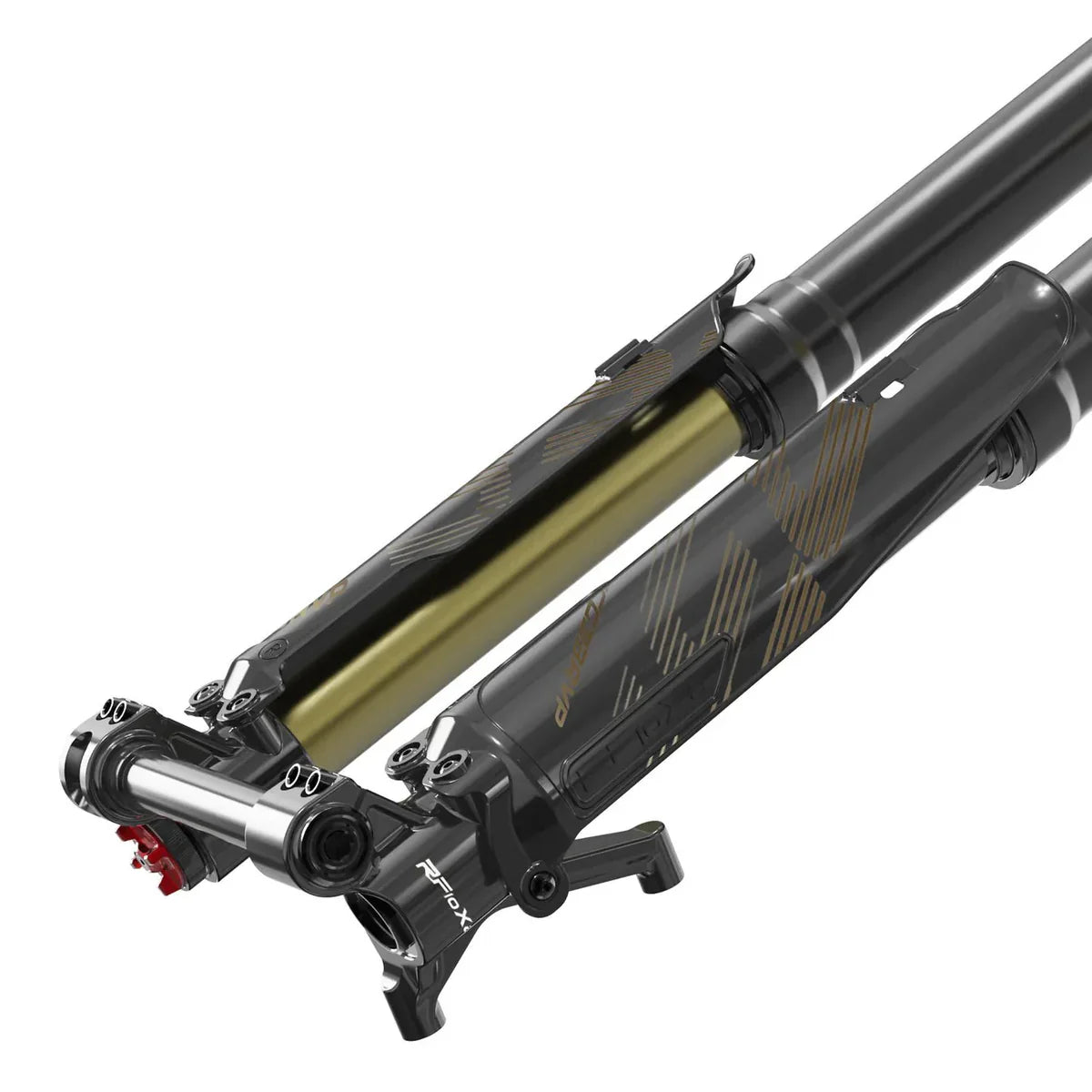

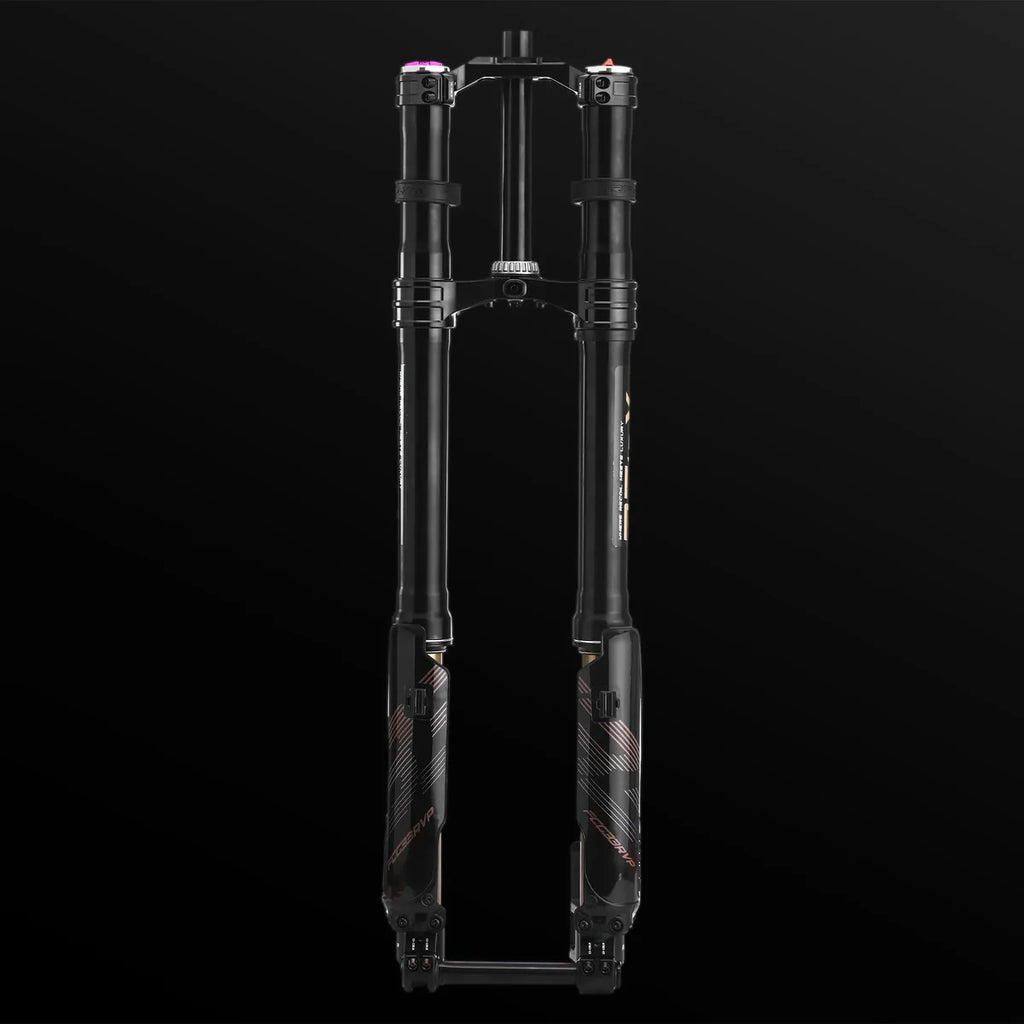

Description
Not include UPPER bearing. In order to adapt to more customers' bike models, our fork will not pre pressed LOWER bearing but will come with fork in default. If you need products that bearing kit have been pre pressed when you order you can make a note.
Note: This fork is designed based on the Talaria Sting MX5 specifications.
Fitment Bike: Talaria MX5
Weight for 203mm travel fork: (compatible with 19’ inches/ 70/100-21'Front Tire)
- 45lbs spring - ≤100kg
- 60lbs spring - 100kg-130kg (for lots of jump)
- 45-60lbs progressive spring - 80kg-130kg
Weight for 228mm travel fork: (compatible with 19’/21’ inches)
- 45lbs spring - ≤100kg
- 55lbs spring - 100kg-130kg
FEATURES:
- Center Distance: 750-800mm
- Main Piston Travel: 203-228mm
- Tube Diameter: ∅37mm
- Caliper Mount Spacing: 95.5mm
- Disc Brake Size: ∅220mm (Upgradeable)
- Suitable For: Electric Dirt Bikes, Downhill Bikes
- Damping System: Inverted Oil-Spring

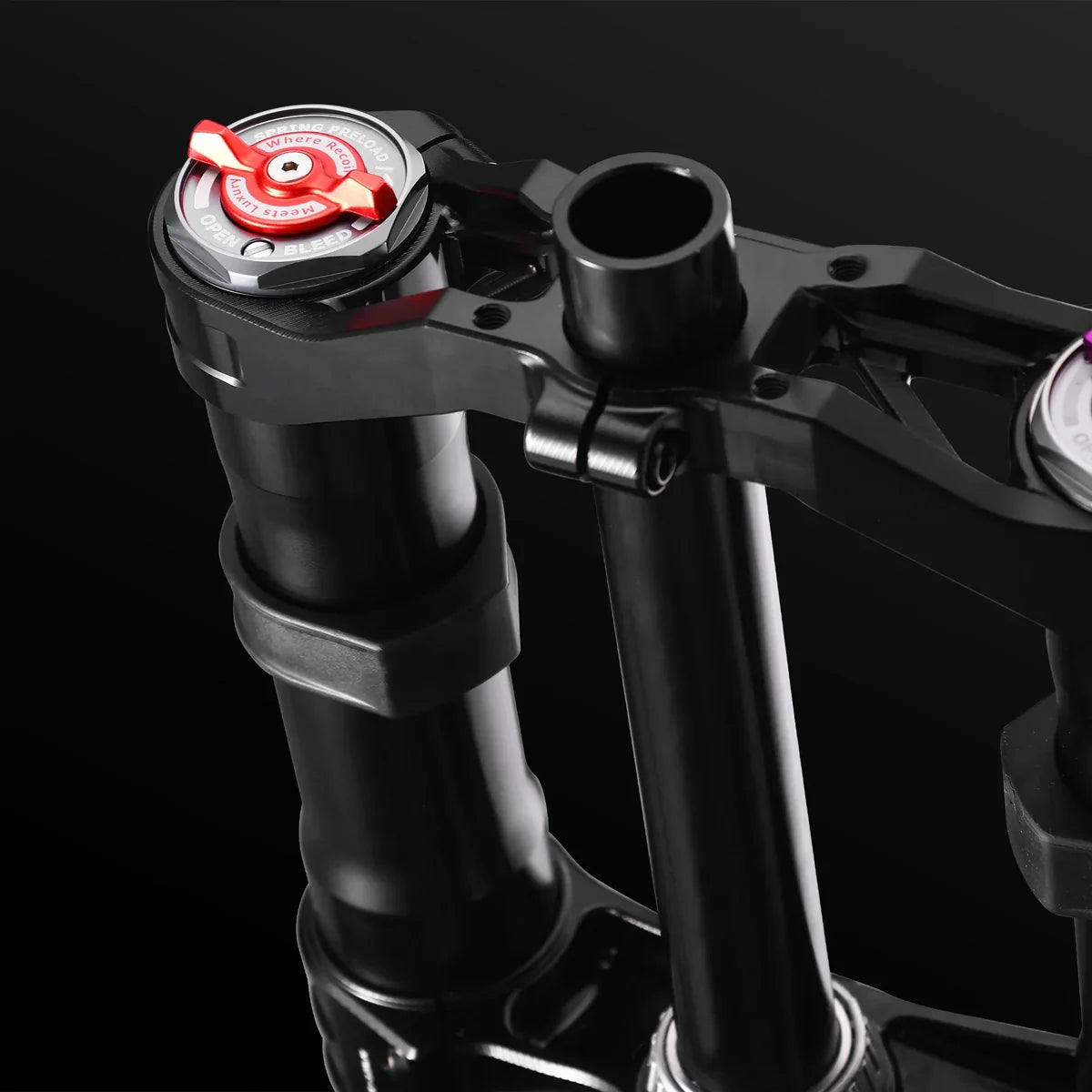

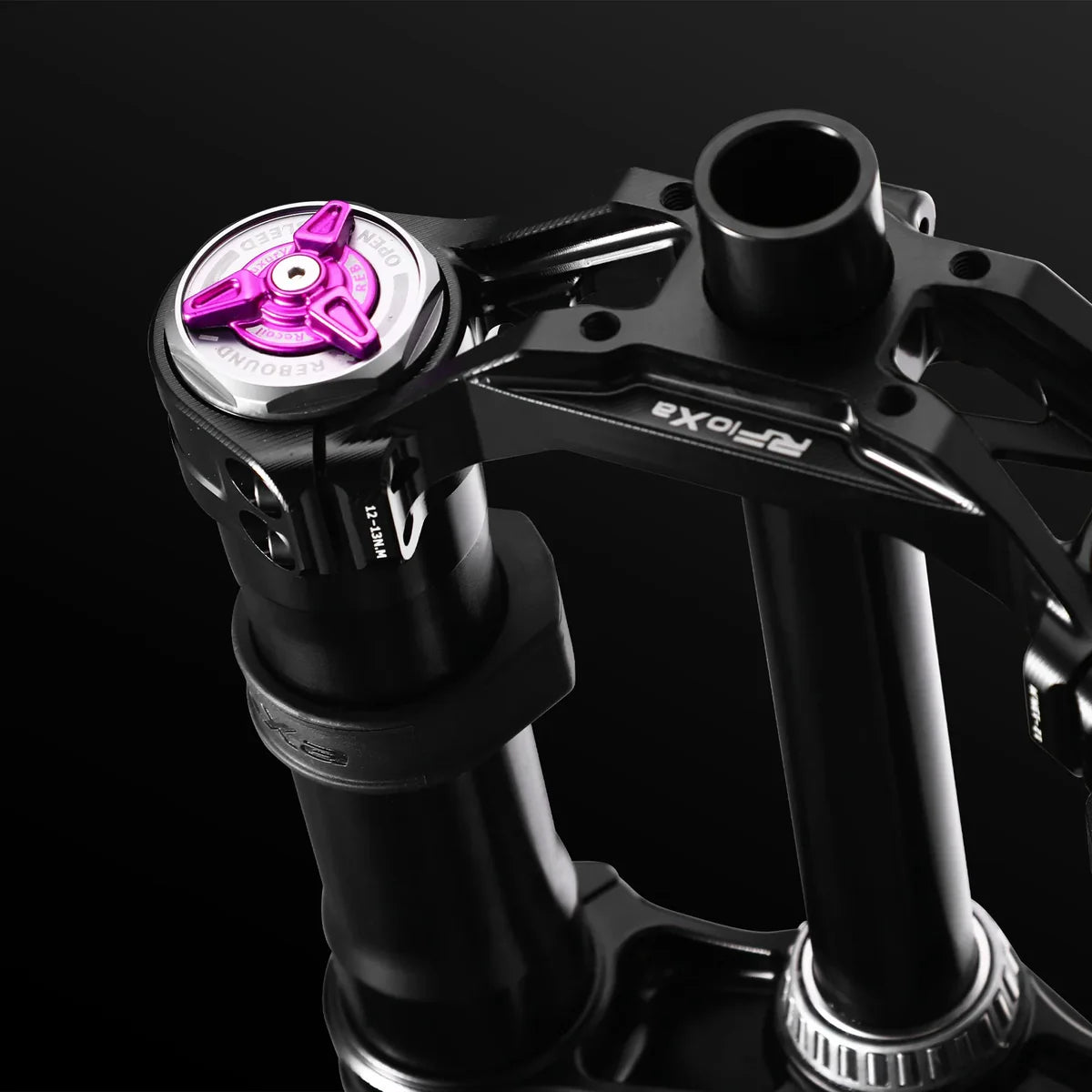

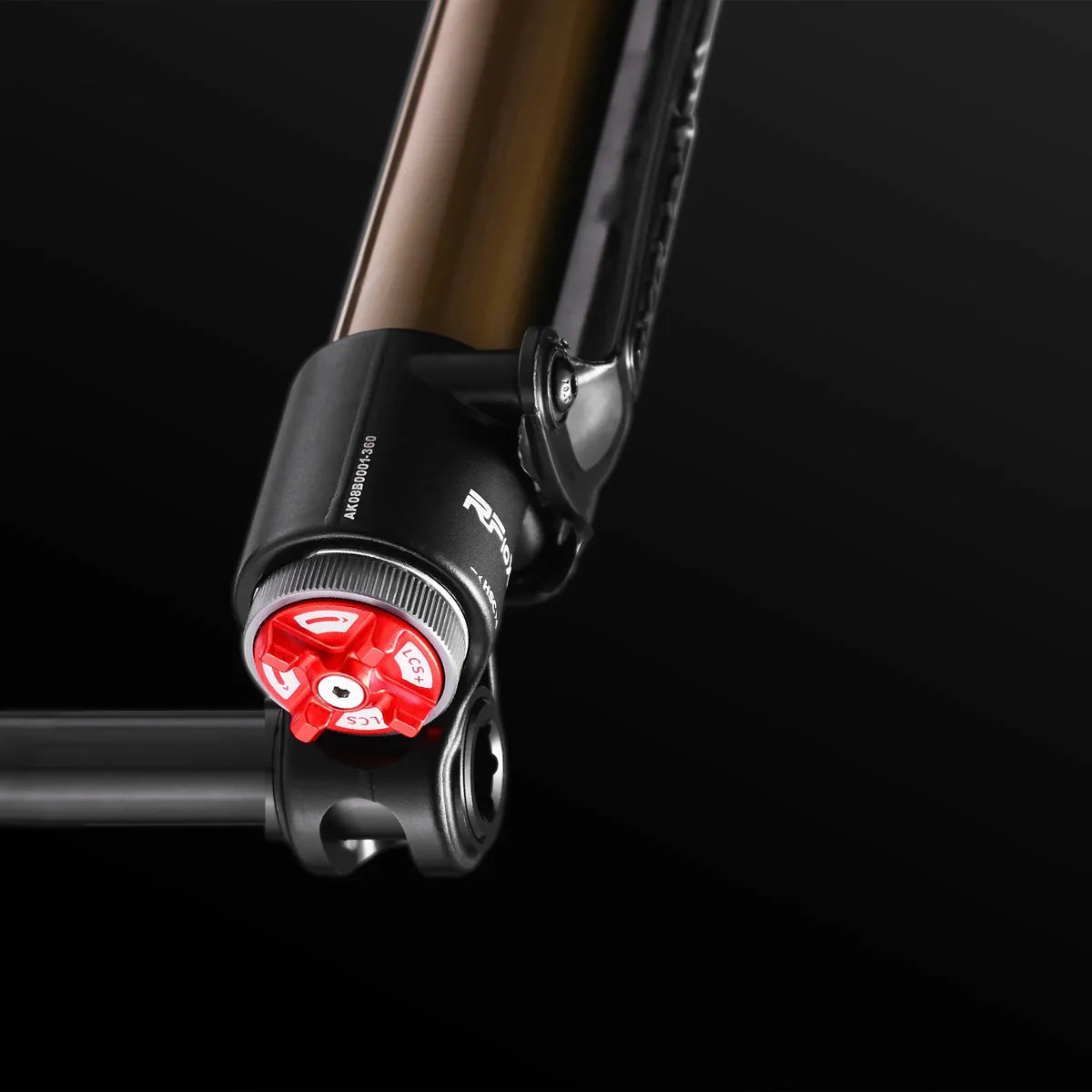

- Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
- Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
- Spring Wire: 55CRSI

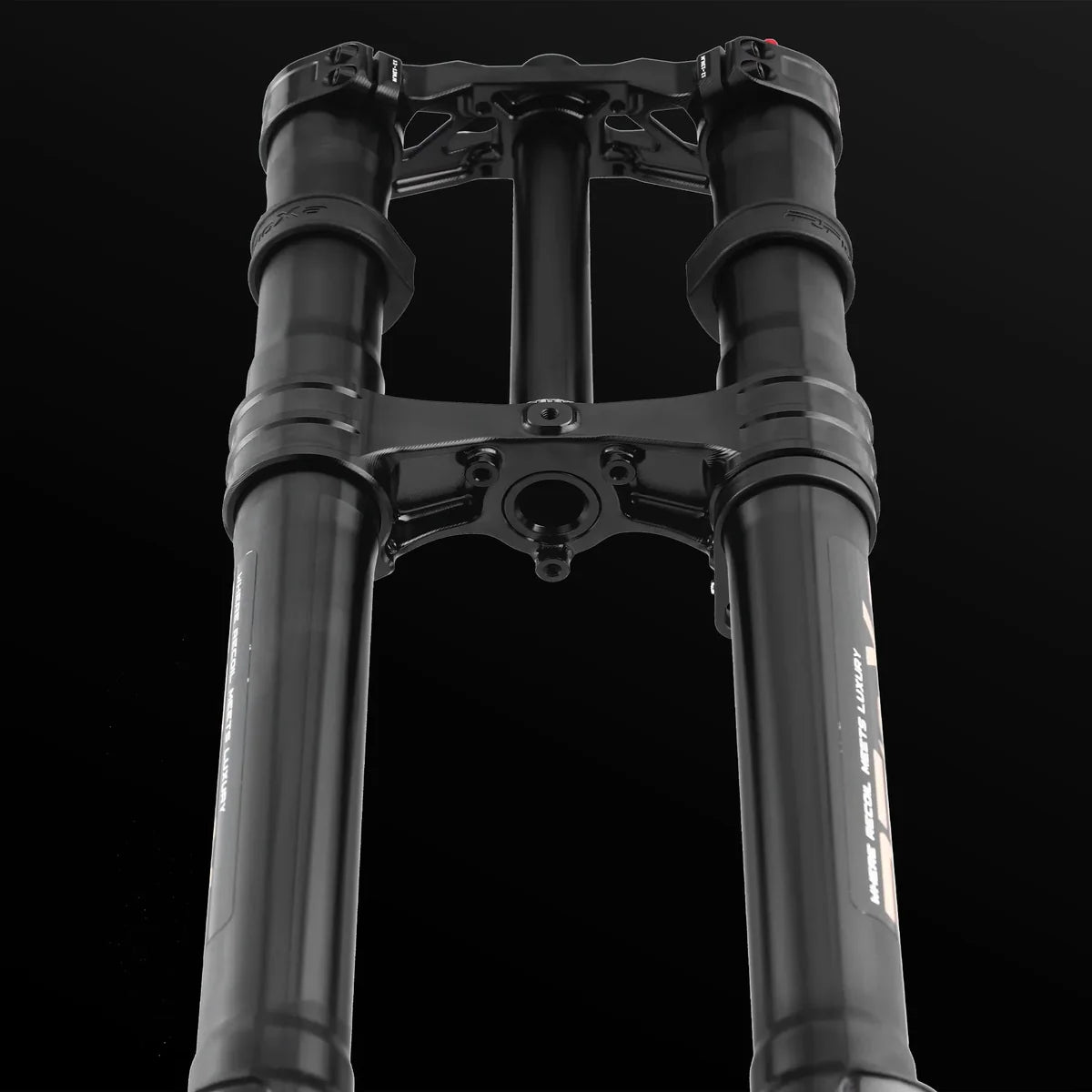

- MAX Triple Clamp: CNC Precision Machined
