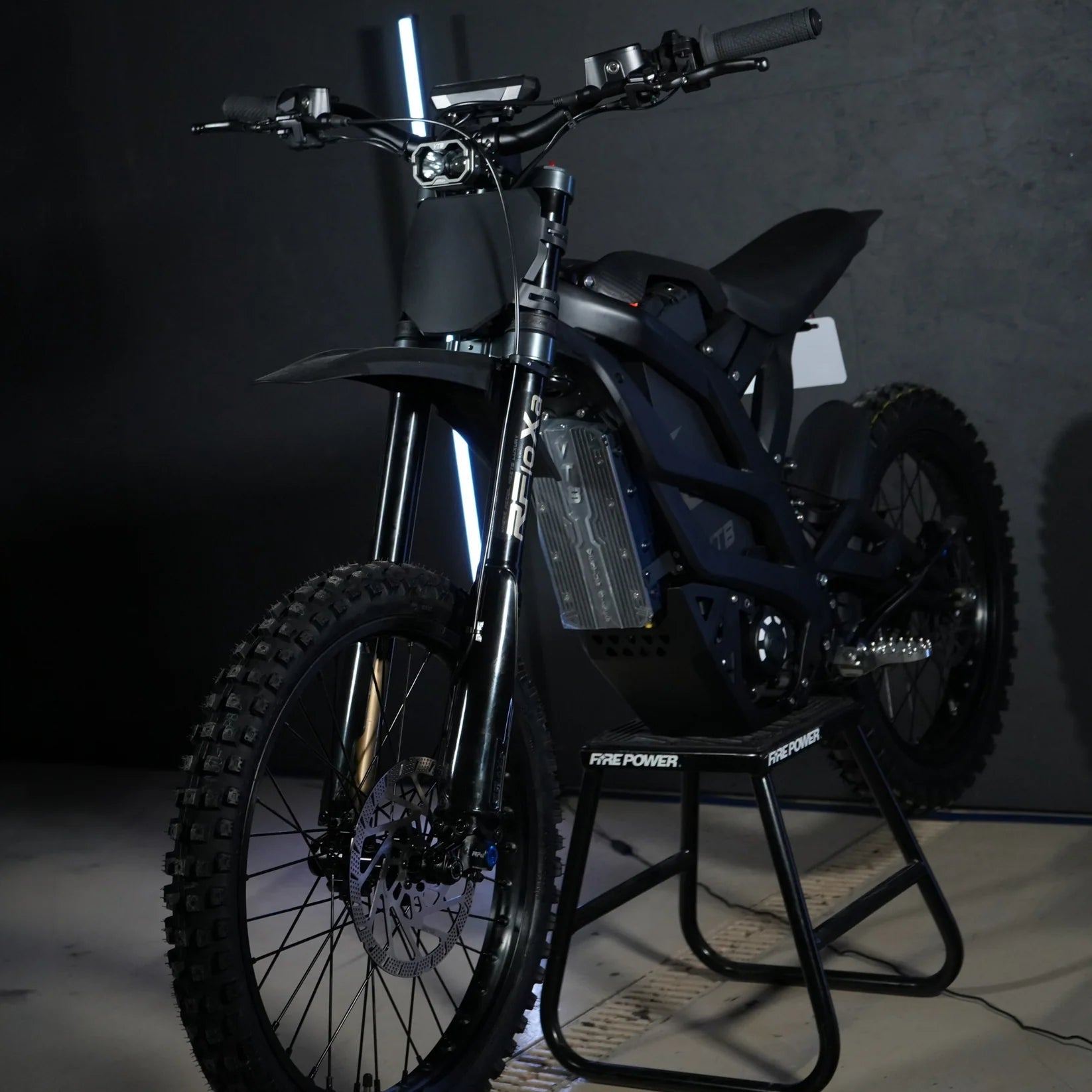

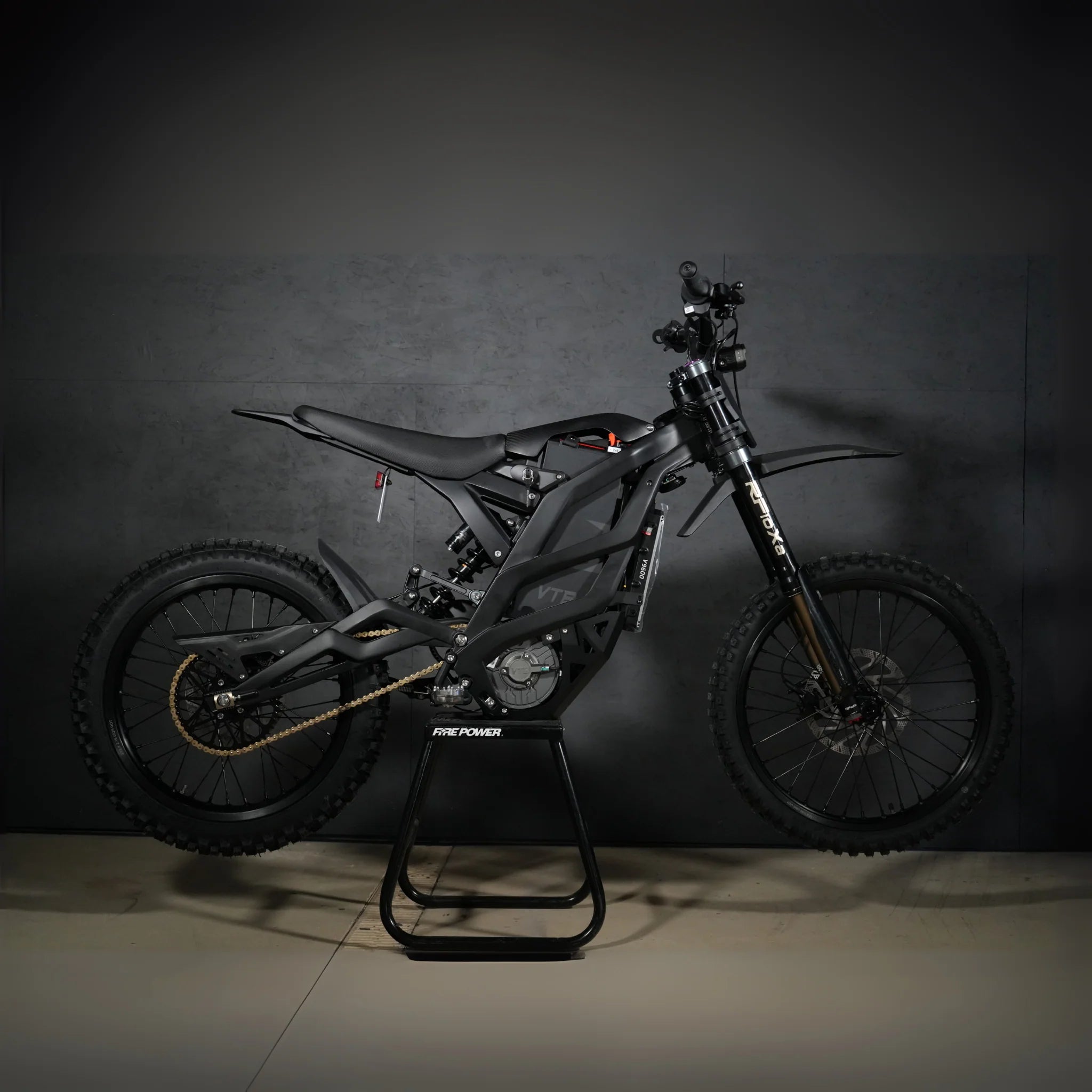

Item: Ventus V1+
Financing: Available at checkout. As low as $85/month.
Peak Power: 28,000W
WLTP Range: 115Km
Battery Voltage: 72V
Battery Capacity: 50Ah
Battery Weight: 69kg
Dimension: 1870*755*1088mm
Weight: 51.2kg (69 Kg with battery)
Weight Capacity: 110Kg
Ground Clearance: 275mm
Wheelbase： 1250mm
Seat Height: 830mm
Fork Suspension: 200mm
Rear Suspension: 85-290mm
Motor: Permanent Magnet Synchronous Motor (PMSM)
Motor Power: 28,000W
Controller: Sine wave controller
Max Speed: 130 Km/h
Moderate-range battery life: 115km (40km/h)
Battery Type: Lithium-ion battery
Charging Time: 4.2h
Frame: Aluminum alloy
Gear: Multi-speed internal hub allows 3 and 5 speeds
Cassette：70/100-19（front) and 3.0-18 (Rear)
Unlock: Near unlocking and PIN unlocking
-
Every Ventus V1+ bike is fully equipped coming out of the factory with ample 20 kw power.
-
Made of 27100 Samsung cells, Ventus V1+ has a large battery capacity, 50Ah, perfect for long-distance ride.
-
The controller program provides a smooth and easy user experience after it was debugged by professional ridders. The controlling APP allows great flexibility in configuring settings.
-

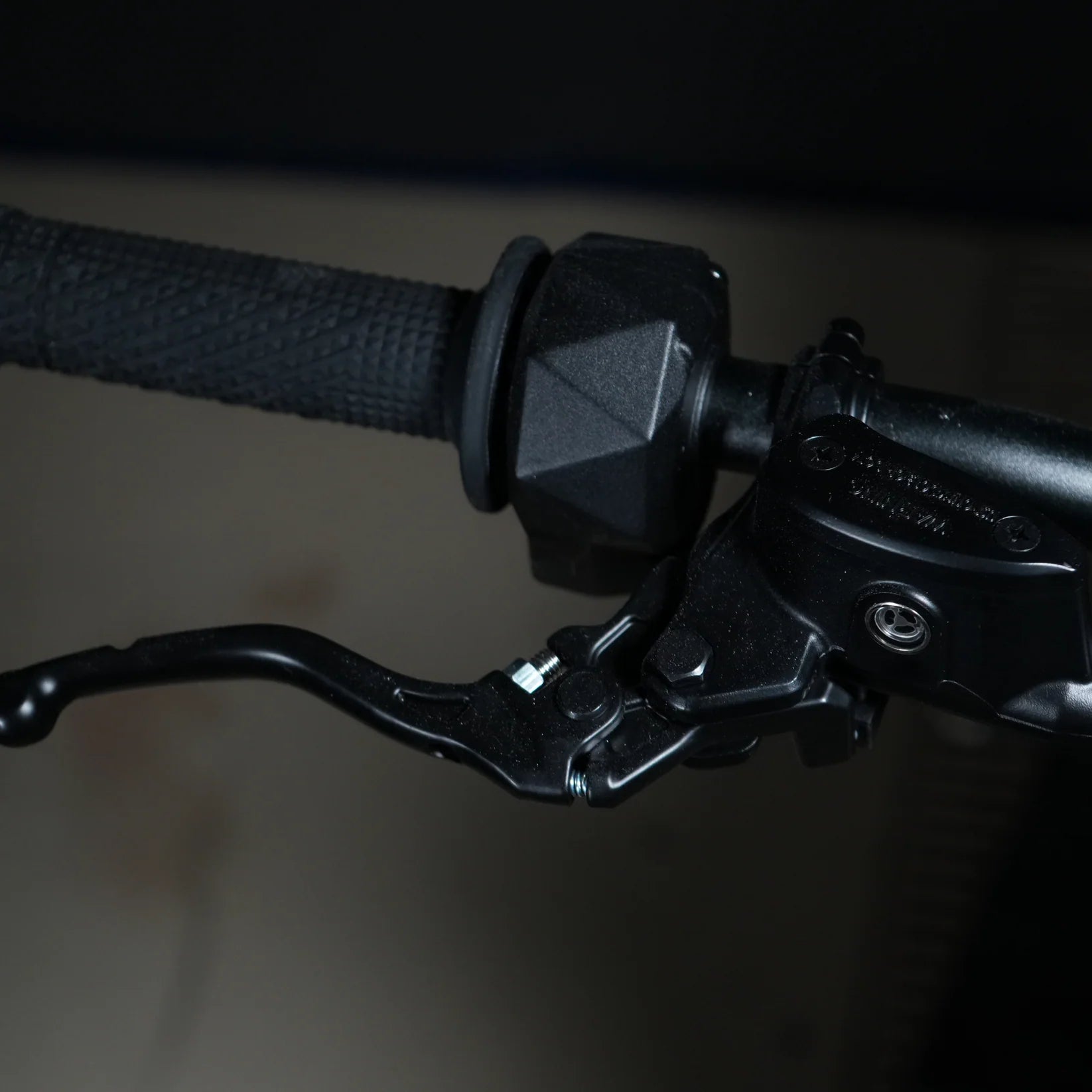

The electronic linear brake is as powerful as hydraulic brake, saving its battery usage by 30%.
-

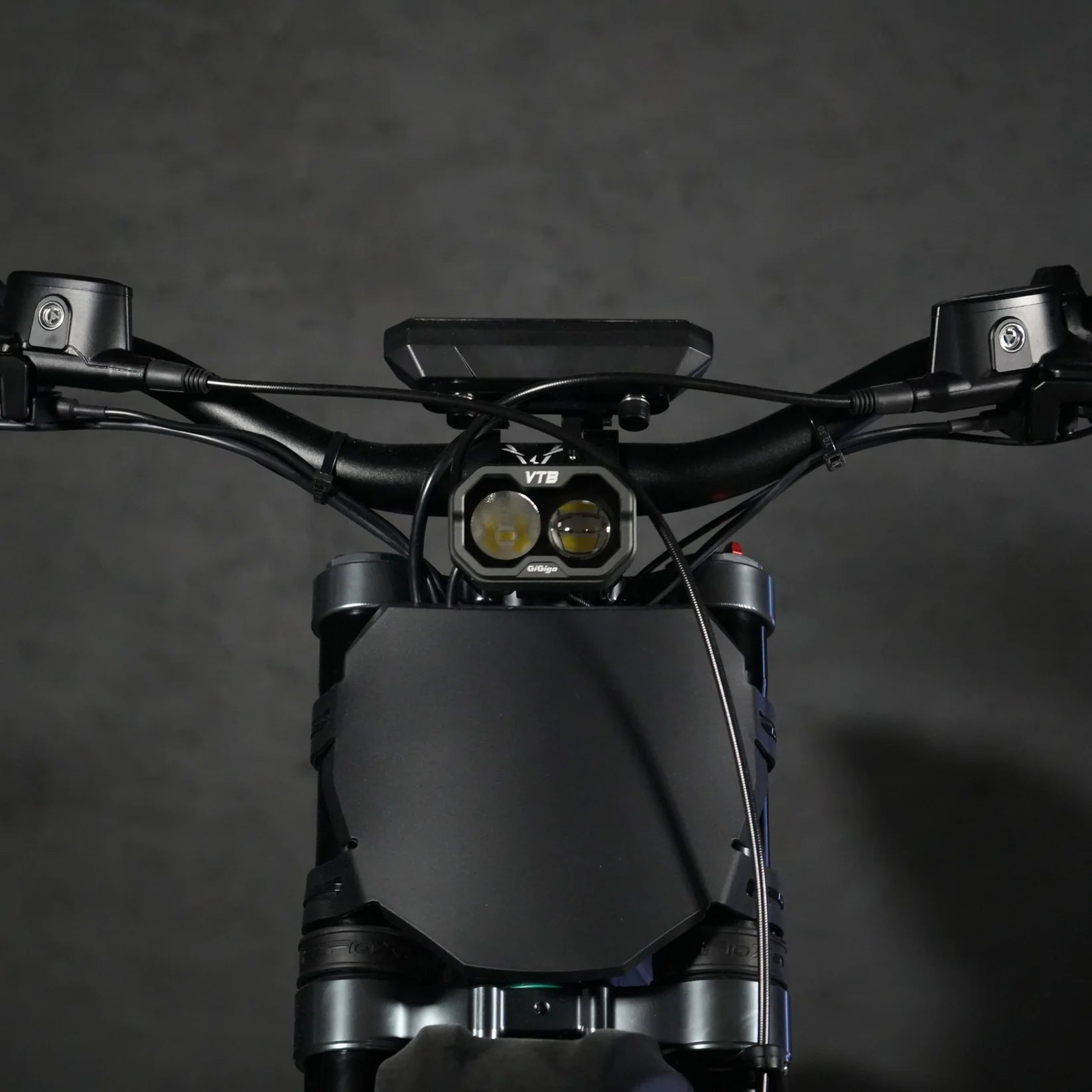

Its multifunctional colored dashboard connects with the battery by bluetooth and demonstrates real-time battery capacity.
-
Near your phone or input PIN to unlock the bike. Key is no longer a problem!
-

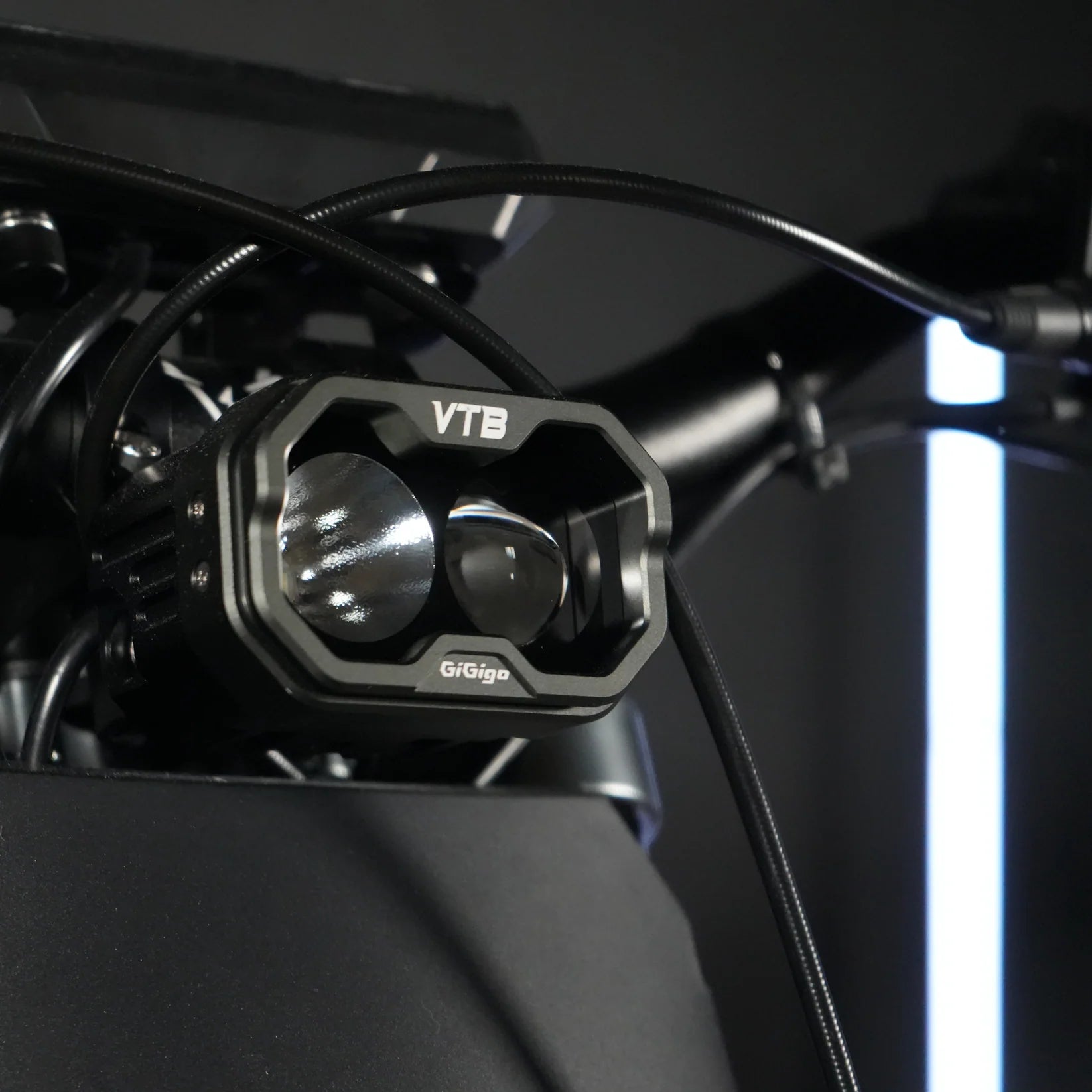

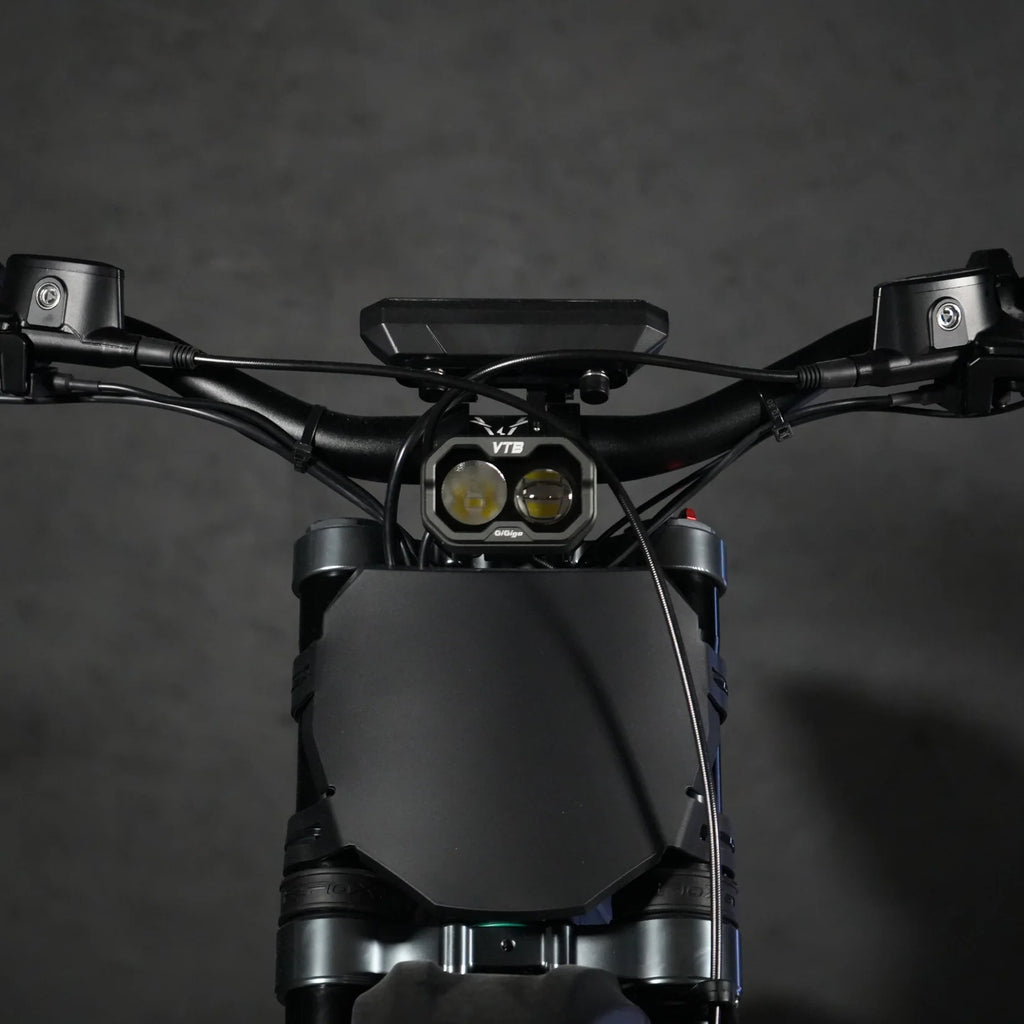

Premium GiGigo headlight, made of 40W LED bulbs. The reflector and lens work together to focus and distribute the light beam in a controlled pattern, ensuring optimal visibility without blinding oncoming drivers.
-

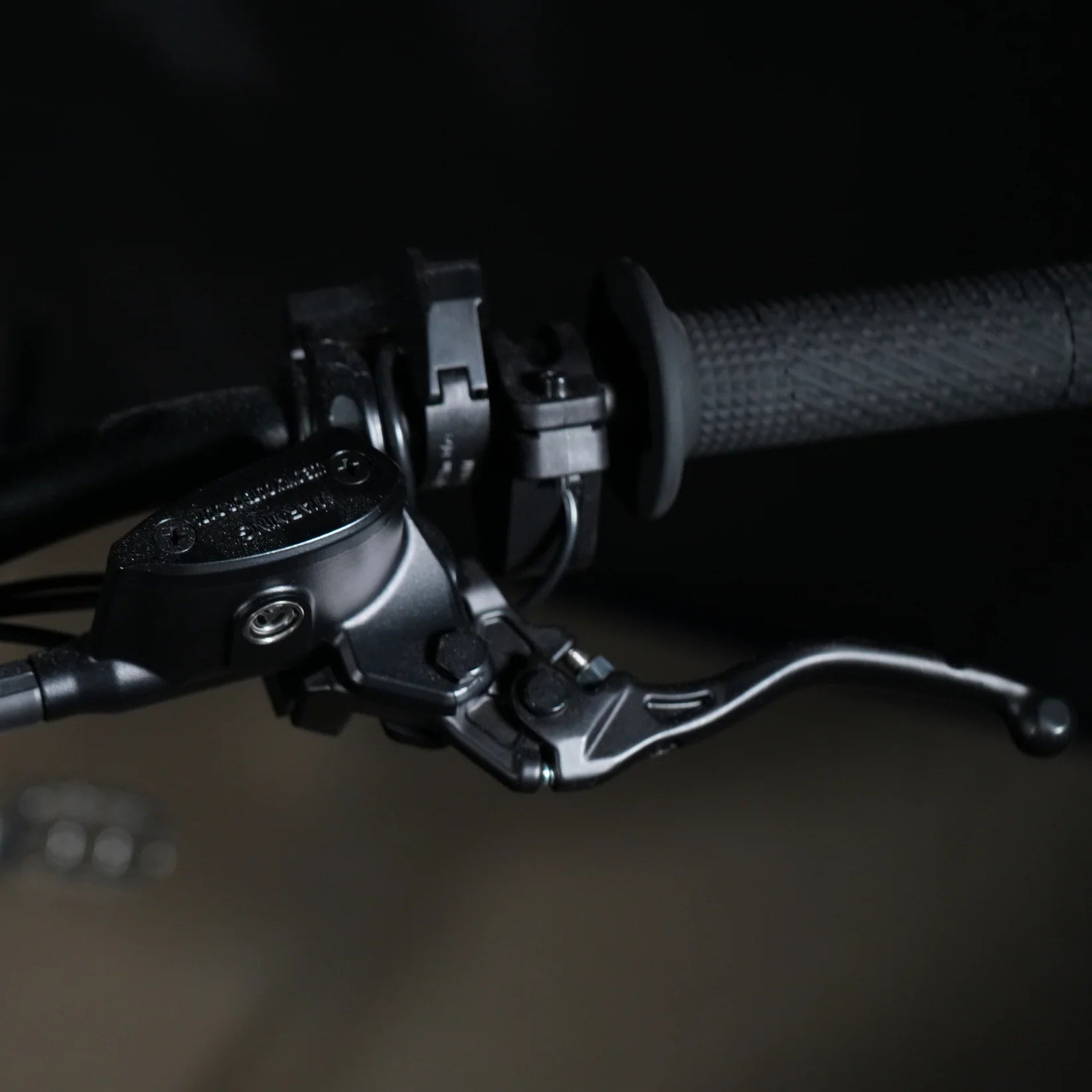

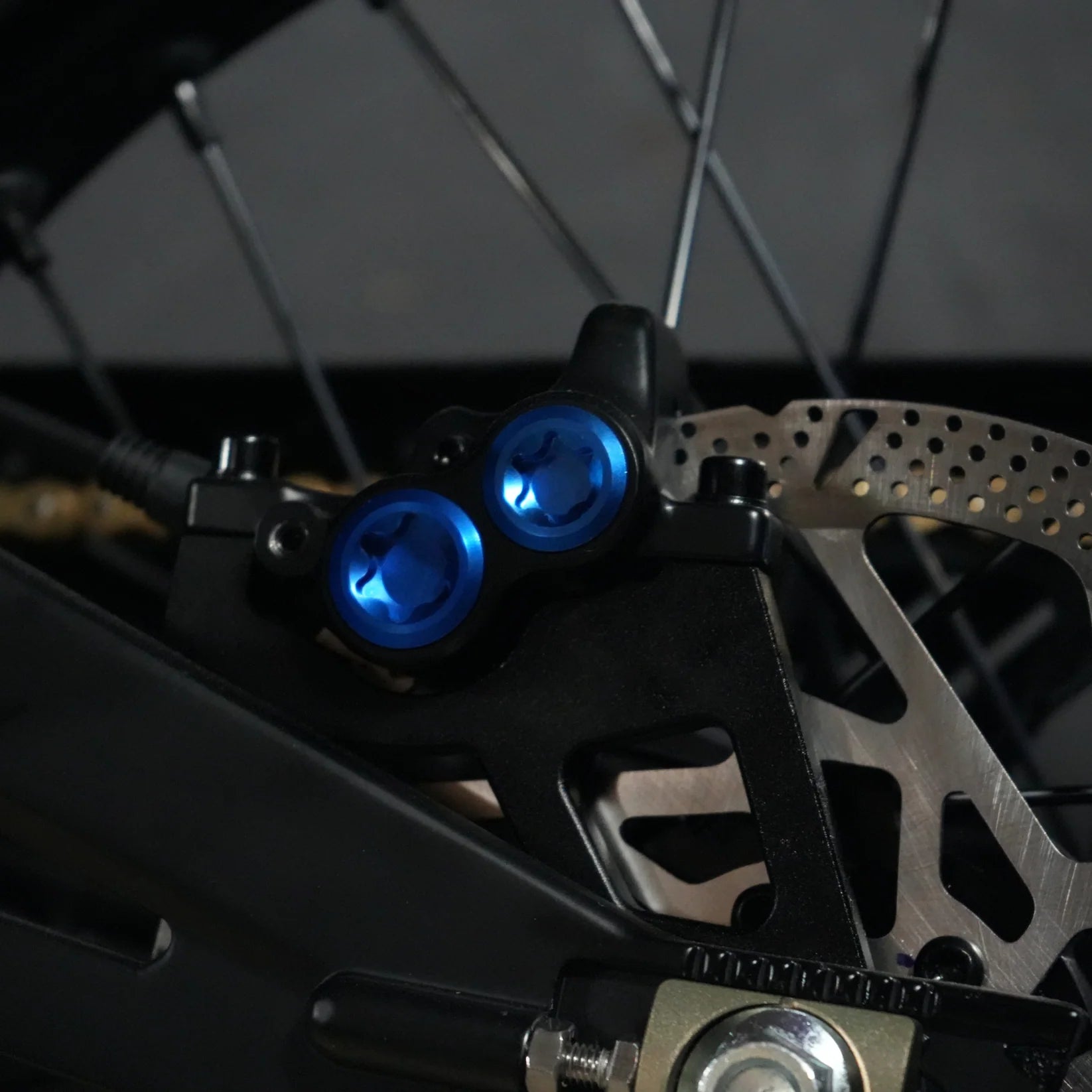

Ultra strong hydraulic brakes offer immediate stop with endurable brake pads and excellent high-performance.
-
The controller and dashboard supports OTA remote update and you can customize boot animation.
Ventus V1+ General Specification
|
Vehicle Model |
Ventus V1+ |
|
Dimensions |
1870mm*755mm*1088mm |
|
Total Weight/Including Battery |
51.2kg (113lbs) /69kg (152lbs) |
|
Maximum Load Capacity |
110kg (220lbs) |
|
Minimum Ground Clearance |
275mm |
|
Wheelbase |
1250mm |
|
Seat Height |
830mm |
|
Front Fork Travel |
200mm |
|
Rear Suspension/Wheel Travel |
85/290mm |
|
Power System |
High-speed Permanent Magnet Synchronous Motor + Sinusoidal Vector Controller |
|
Maximum Output Power |
28,000W |
|
Maximum Torque of the Driving Wheel |
390N.m |
|
Maximum Speed |
130km/h |
|
Medium-speed Range |
115km@40km/h |
|
Tire Specifications |
70/100-19, Rear 3.0-18 |
|
Unlocking Method |
Sensory Unlocking + Password Unlocking |
|
Torque of the Driving Wheel |
390N.M |
|
Peak Power |
28000W |
|
Range |
115Km |
|
High-performance lithium battery |
72V50Ah |
|
Ultra-lightweight |
69kg |
|
High Thrust-to-Weight ratio |
0.39 |
Ventus V1+ Vehicle Specification
|

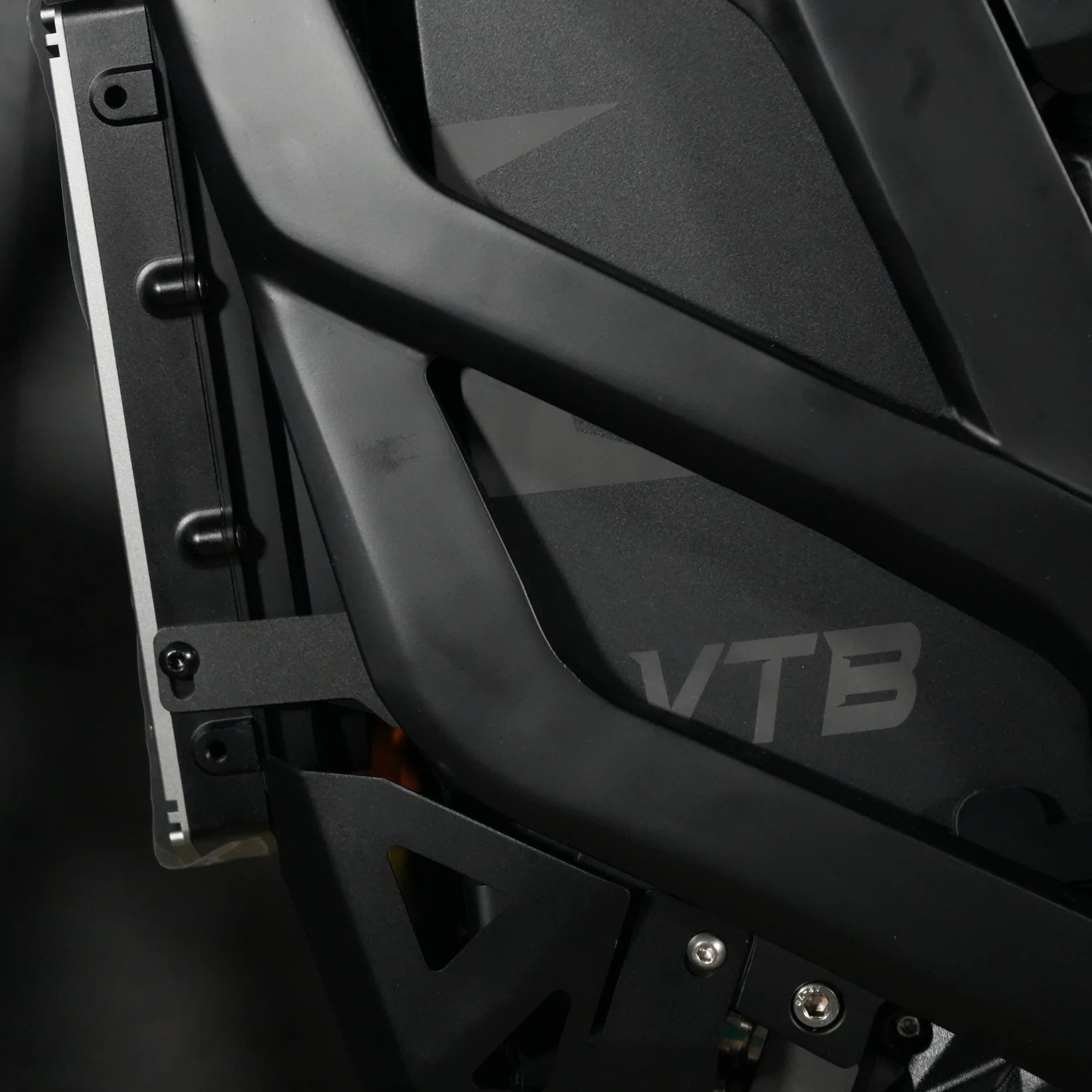

Chassis & Swingarm |
Forged Aluminum |
|
Chassis Surface & Colour Processing |
Anodic Oxidation |
|

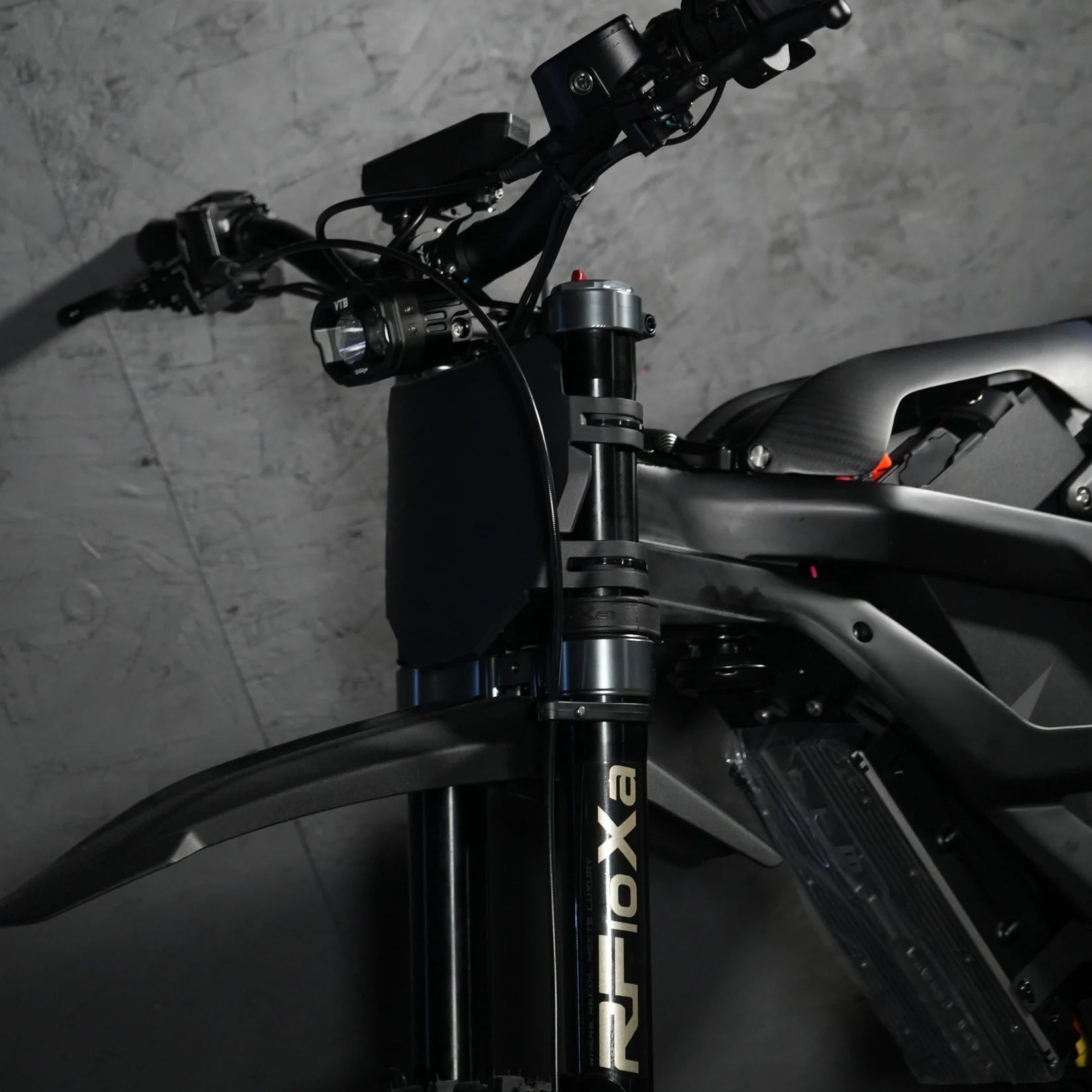

Front Suspension |

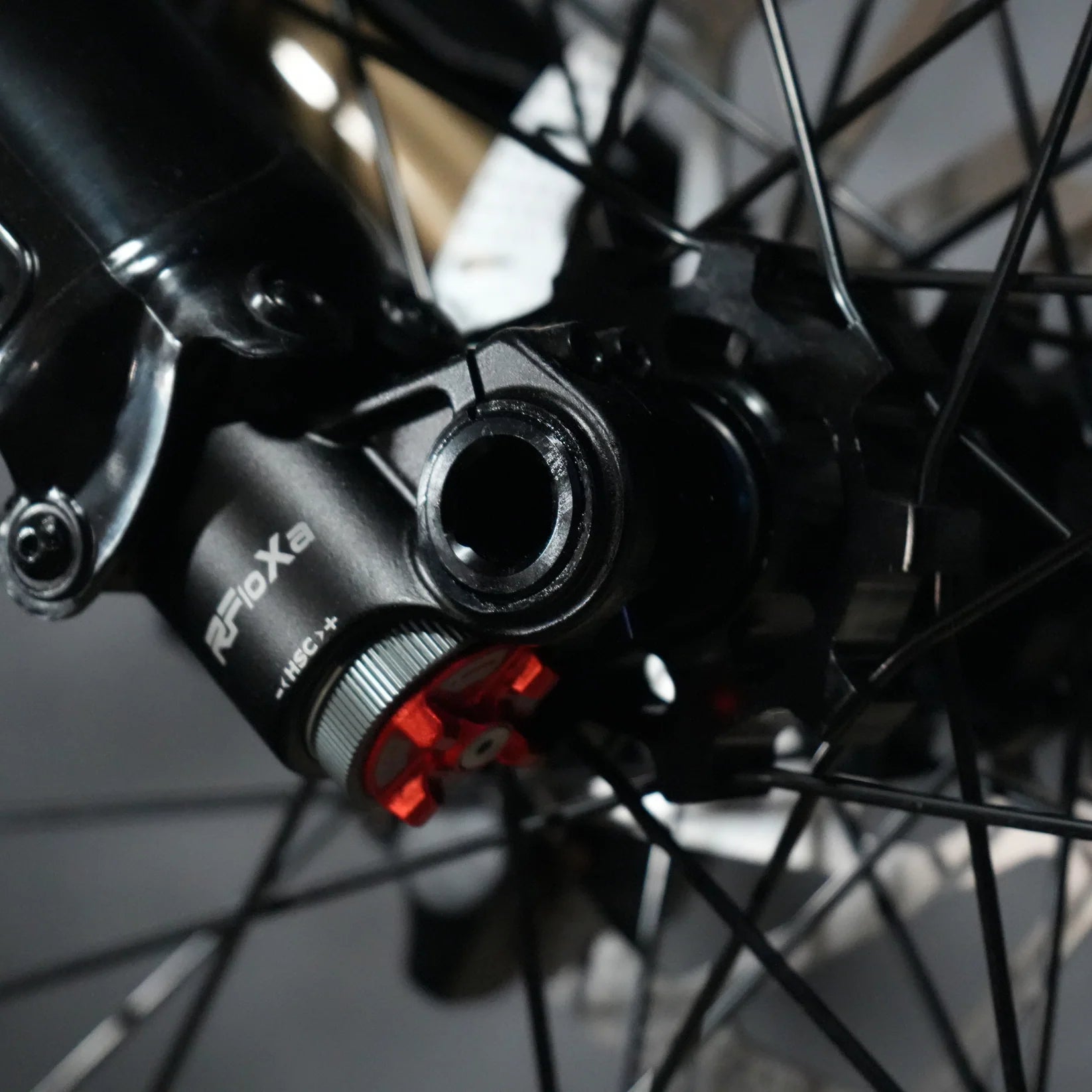

Fastace 12RV, Adjustable Preload & Rebound |
|

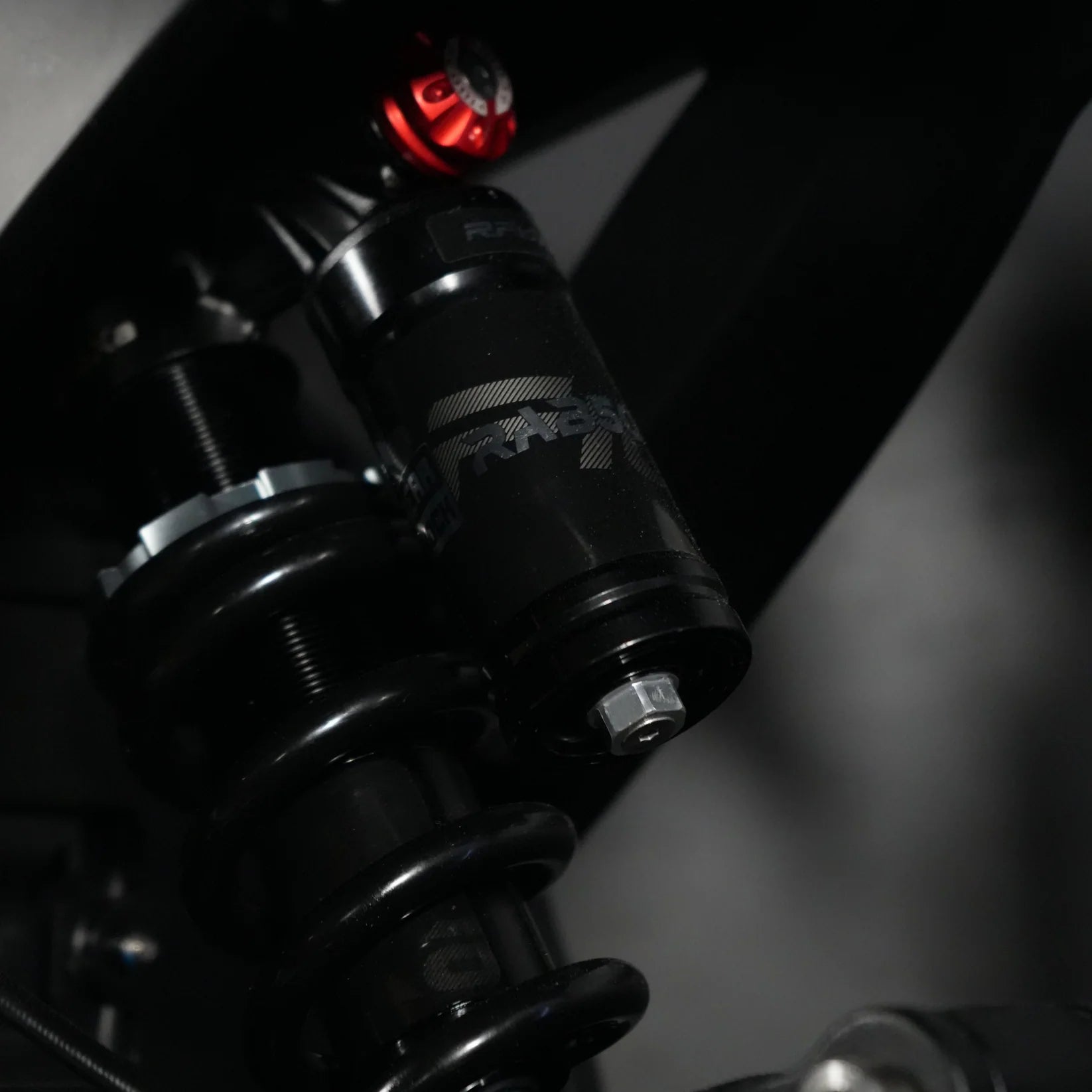

Rear Shock Absorber |
79Bike i2 Shock 450 lb with TR Suspension Link System, Adjustable Compression & Rebound |
|
Wheel Type & Size |

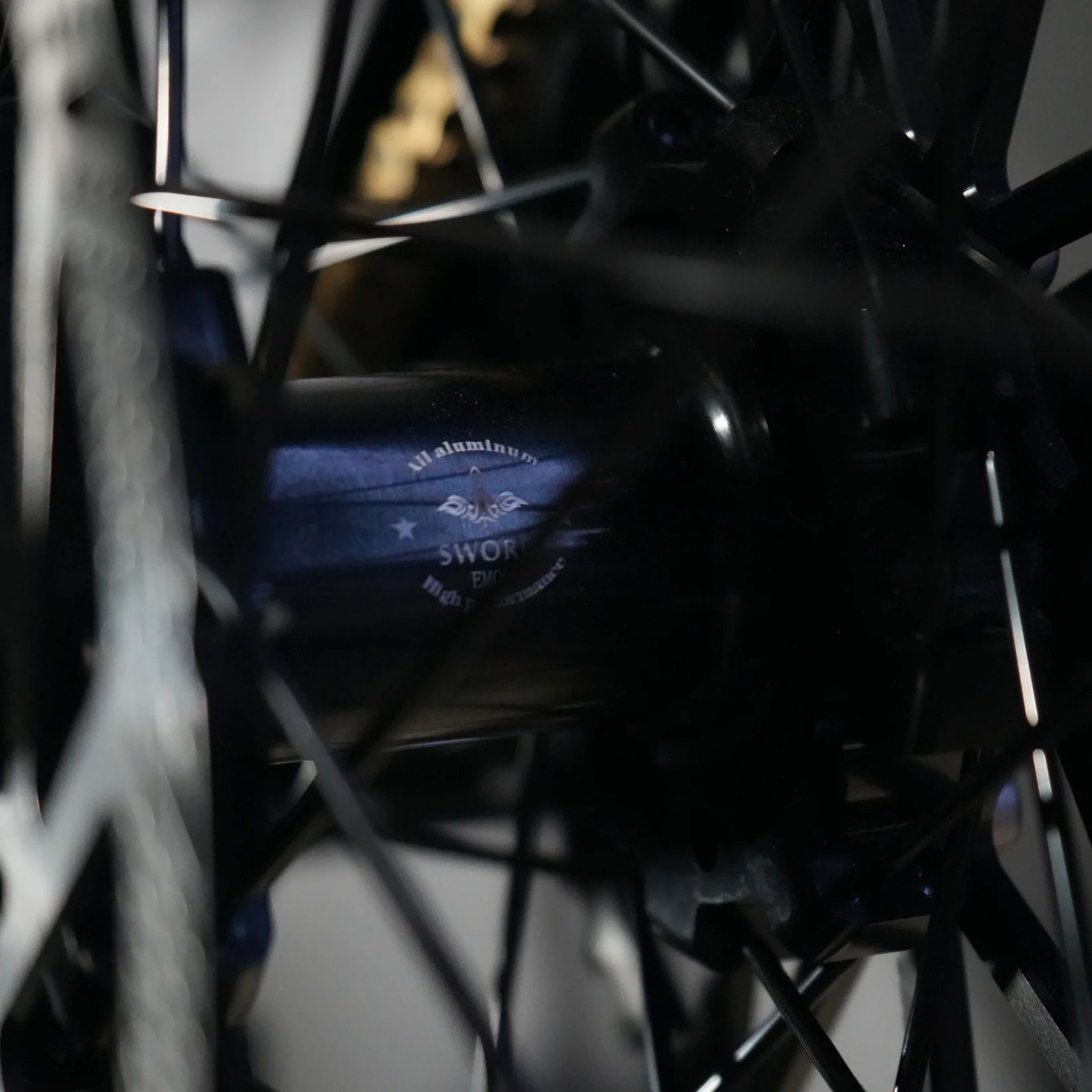

19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs |
|
Tire Size |
70/100-19 Front / 3.0-18 Rear |
|
Max Range |
100km @ 32km/h depending upon terrain |
|
Net Weight |
47kg (Plus Battery |
|
Max Load |
100kg (220 lbs.) |
|
Max Climbing Angle |
45 degrees |
|

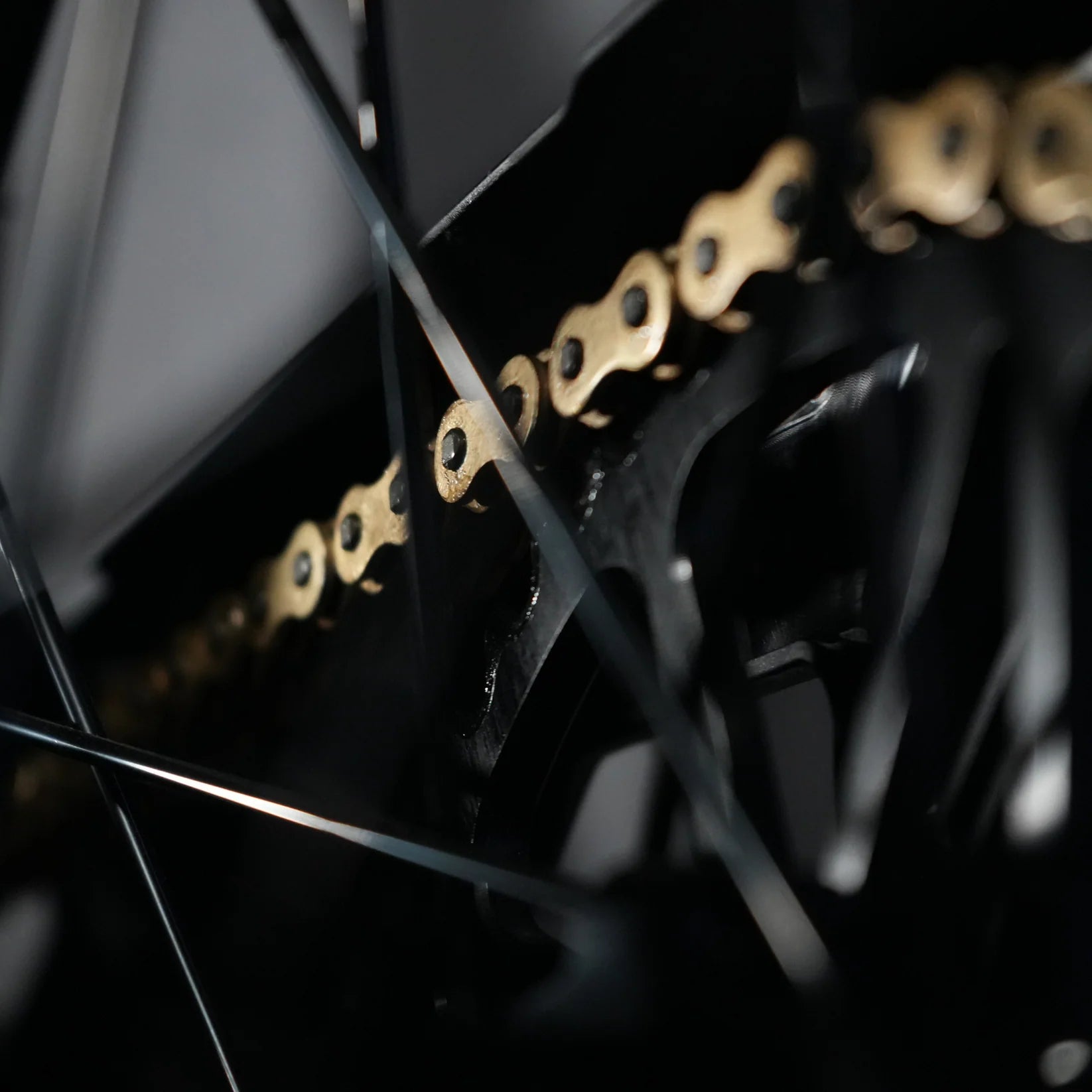

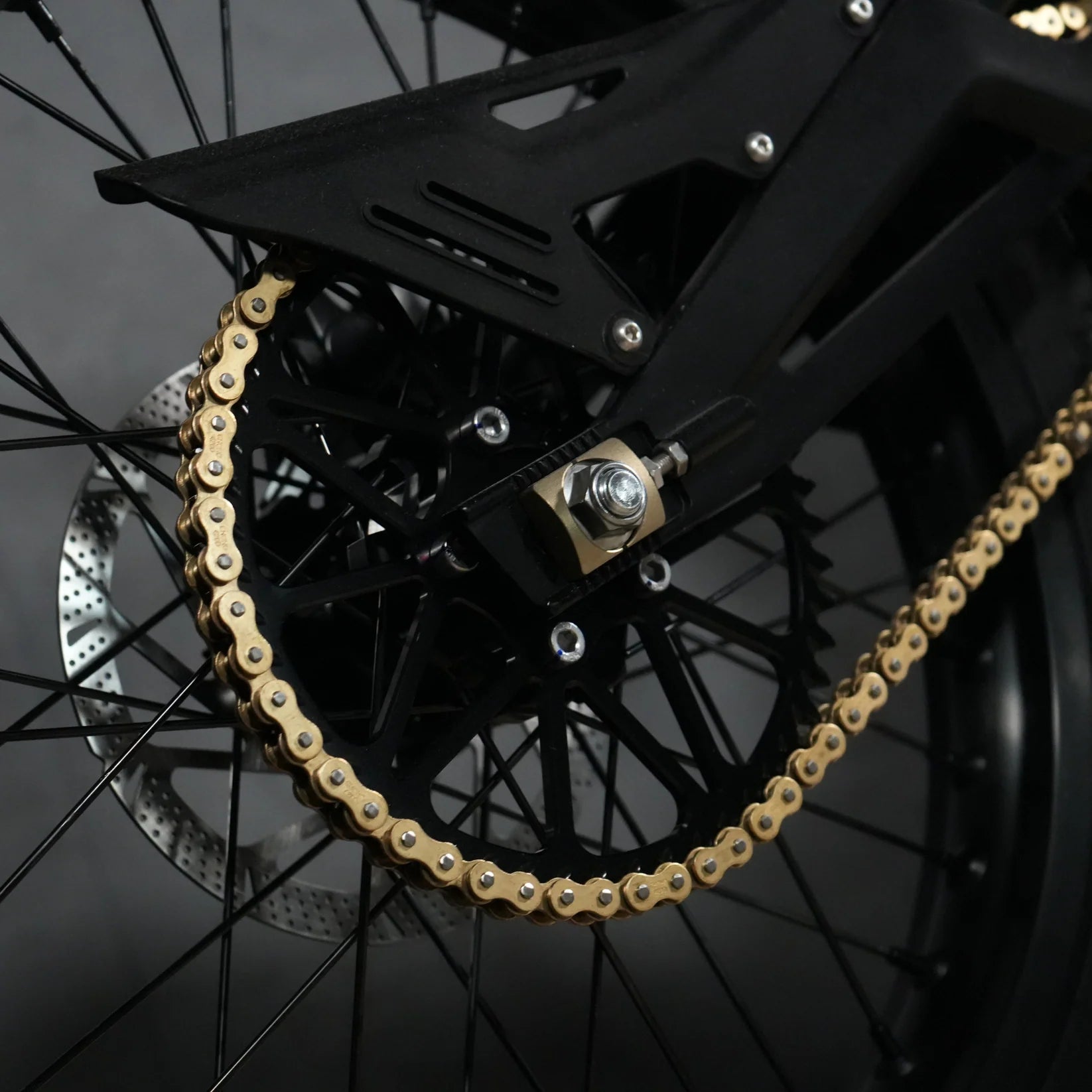

Rear Sprocket |
52T |
|
Side Stand |
With Kill Switch |
|
Vehicle Dimensions |
1,870mm x 780mm x 1,040mm |
|
Minimum Ground Clearance |
270mm |
|
Wheelbase |
1,260mm |
|
Seat Height |
84-88cm |

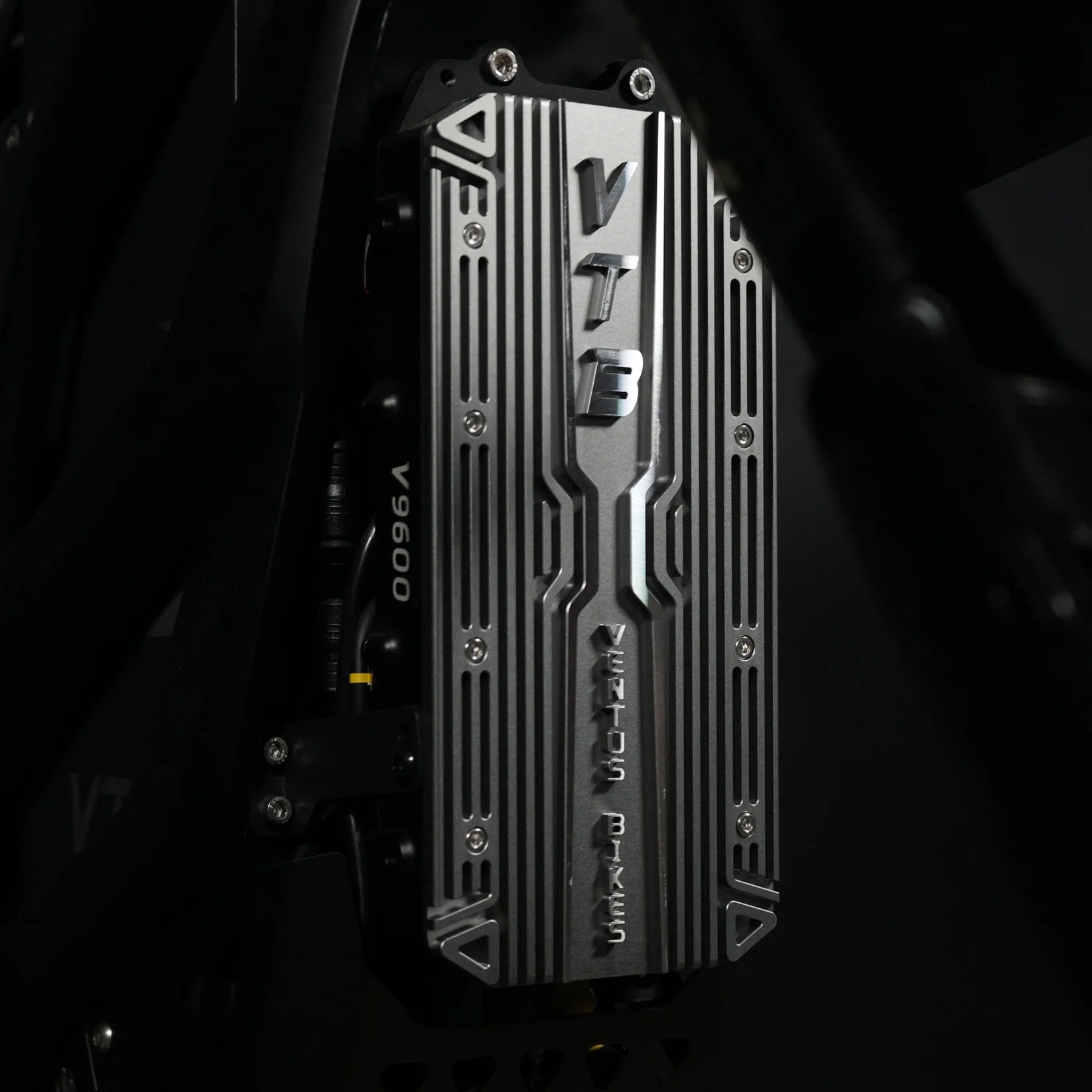

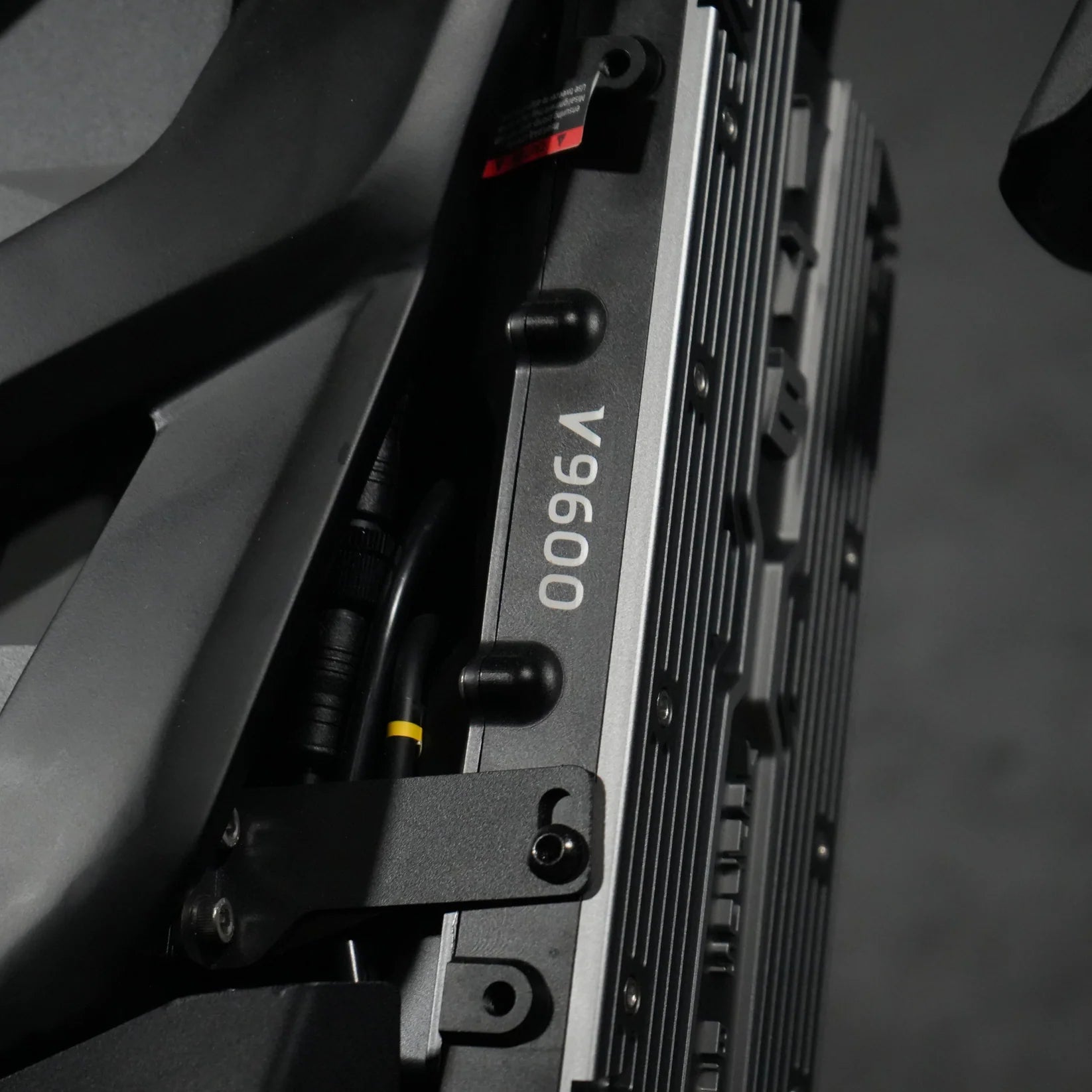

Ventus V1+ Controller Specification
|
Controller Type |
X Version Sine Wave |
|
|
Dimensions |
240mm x 110mm x 50mm |
|
|
Peak Efficiency |
98.50% |
|
|
Power Modes |
Eco and Sport |
|

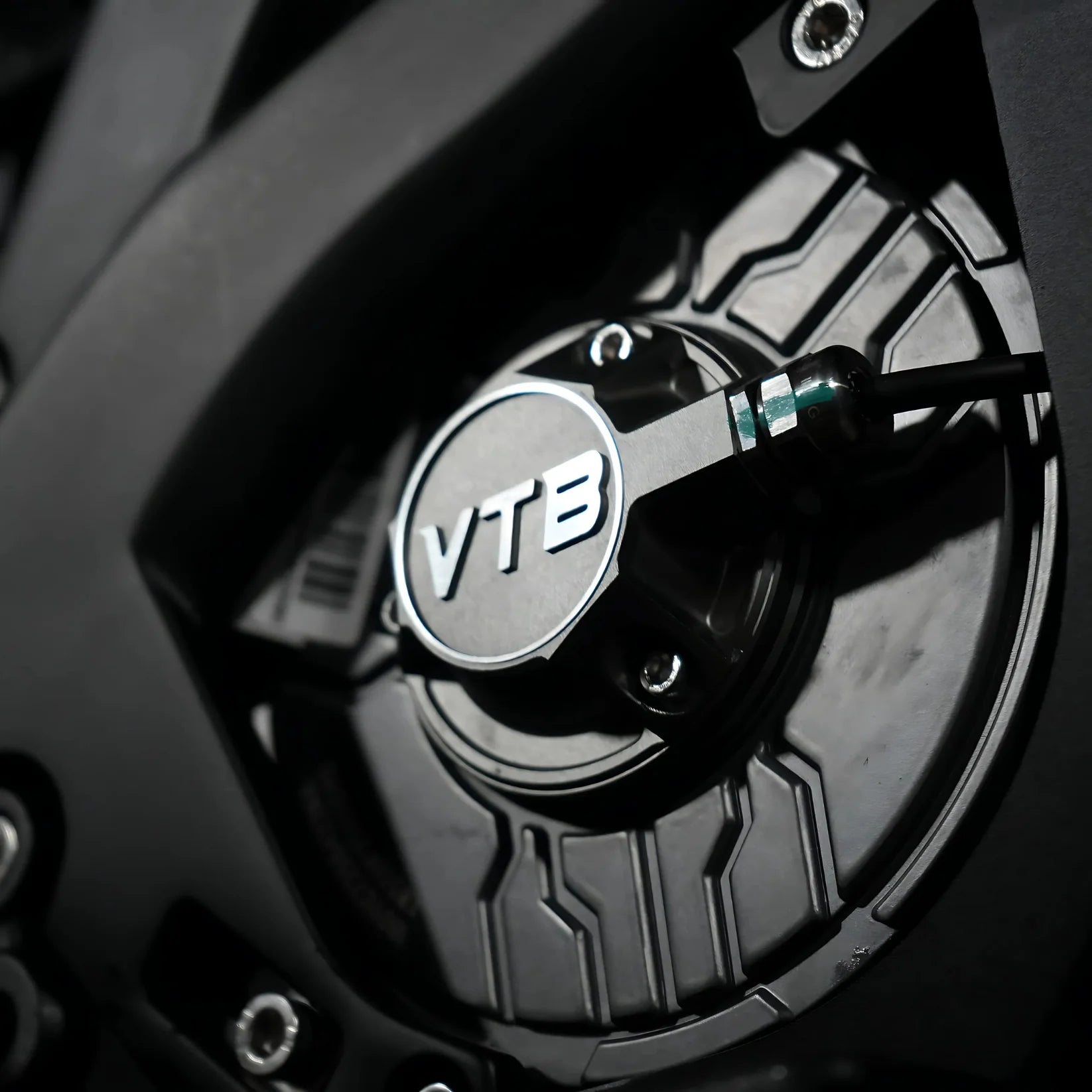

Ventus V1+ Motor Specification
|
Motor Type |
PMSM |
|
|
|
Weight / Motor External Diameter |
7.0kg / 180mm |
|
|
|
Motor Axial Length |
130mm |
|
|
|
Peak Efficiency |
95.60% |
|
|
|
Cooling Method |
Air-Cooled |
|
|
|
Rated Voltage |
60V (DC) |
|
|
|
Rated Power / Peak Power |
3,000W / 6,000W |
|
|
|
Motor Shaft Output Torque @ 1000RPM |
35.40Nm |
|
|
|
Rated Rotation Speed |
4300rpm |
|
|
|
Peak Efficiency |
97.8% |
|
|
|
Range of Efficiency (≥80) |
1.4Nm – 21.5Nm |
|
|
Ventus V1+ Battery Specification
|
Battery Type |
72V50Ah Ternary Lithium Battery |
|
Charging Time |
4.2h |
|
Frame Type |
Aluminum Alloy Forging |
|
Power Mode |
3-speed power + 5-maps |
