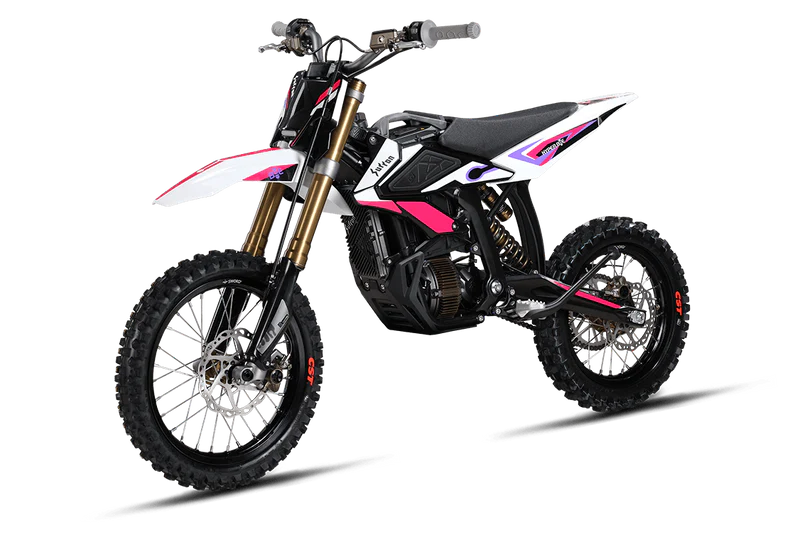

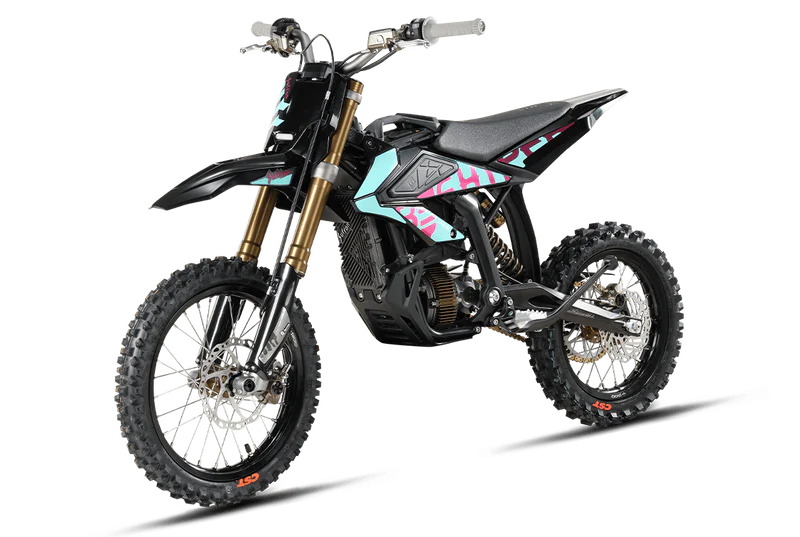

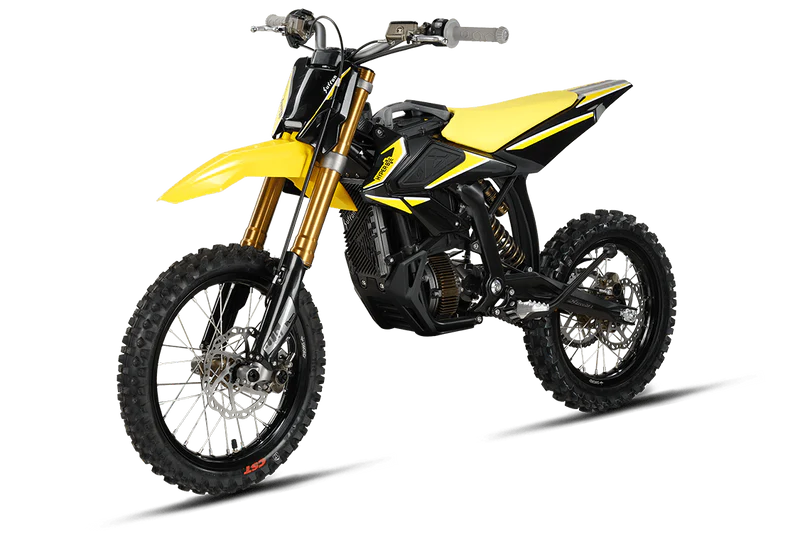

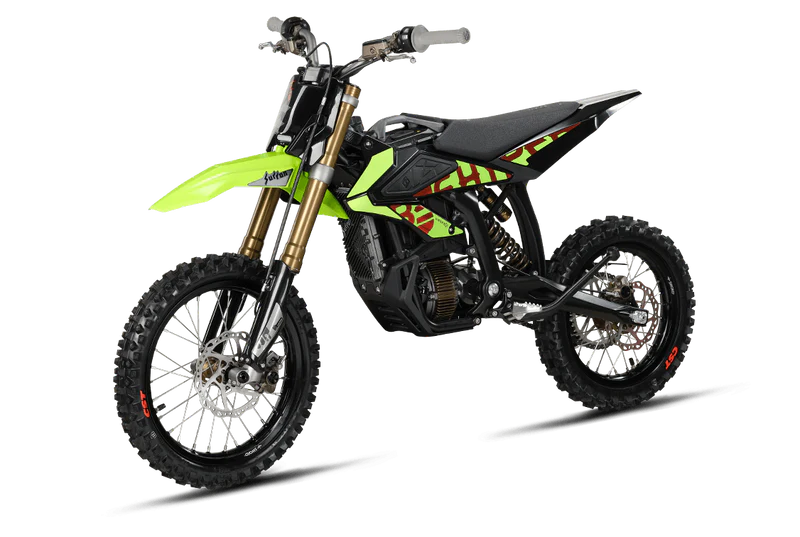

Hyper Bee Specifications
Models
Hyper Bee 14/12 | Hyper Bee 12/10
Specifications
| Dimension |
| Dimension |
59.06 in x 29.77 in x 34.84 in |
| Seat Height |
26.9 in (adjustable range 26 in - 27.8 in) |
| Curb Weight |
85.9 lbs |
| Ground Clearance |
9.4 in - 10.2 in (depending on the position adjusted by the shock absorption) |
| Max. Torque (on wheel) |
117 ft-lbs |
| Suspension System |
| Front Suspension |
1.4 in inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 24.6 in, stroke 6.7 in |
| Rear Suspension |
Airbag type adjustable 9 in single rear shock (2.3 in / 7.3 in) |
| Additional Specifications |
| Wheel Base |
40.7 in |
| Carrying Capacity |
143.3 lbs |
Power System
| Power System |
PMSM, MTPA/MTPV Controller |
| Maximum Power (Motor) |
5 kW |
| Riding Mode |
1 / 2 / 3 / Reverse (R) |
| Assistance Functions |
Sliding energy recovery with three-level adjustable levels |
| Battery Type |
50.4 V / 25 AH Lithium-ion Battery pack |
| Throttle Curve |
Three-stage Adjustable |
| Primary Belt System |
Primary gear drive + second chain drive |
| Charging Parameter |
Portable charger - magnetic charging - fully sealed |
Performance
| Top Speed |
34 mph |
| WMTC Road |
31 miles @ 24.9 mph |
| Charge Time (20%-80%) |
2.5 hours |
Frame & Tire
| Tire Type |
Front - 60/100-14 Off-Road
Rear - 70/100-12 Off-Road
--------------------------------
Front - 60/100-12 Off-Road
Rear - 70/100-10 Off-Road
|
| Frame Material |
Forged aluminium alloy |
Assistant Functions
| Remote Control |
Intercom function | Power mode setting |
| Safety Function |
Magnetic emergency switch | Remote emergency power off function |
| Tilt Protection |
Gyroscope sensor (can be turned off in feature setting mode) |
