Description
-
97.2V35Ah (3402Wh) Samsung 50S battery Cells (Greenway Battery Pack)
- Charging time (20% - 80%): 2 Hours
- 22kw peak Hairpin Motor (Automotive standard)
- Adjustable off-road air-spring suspension

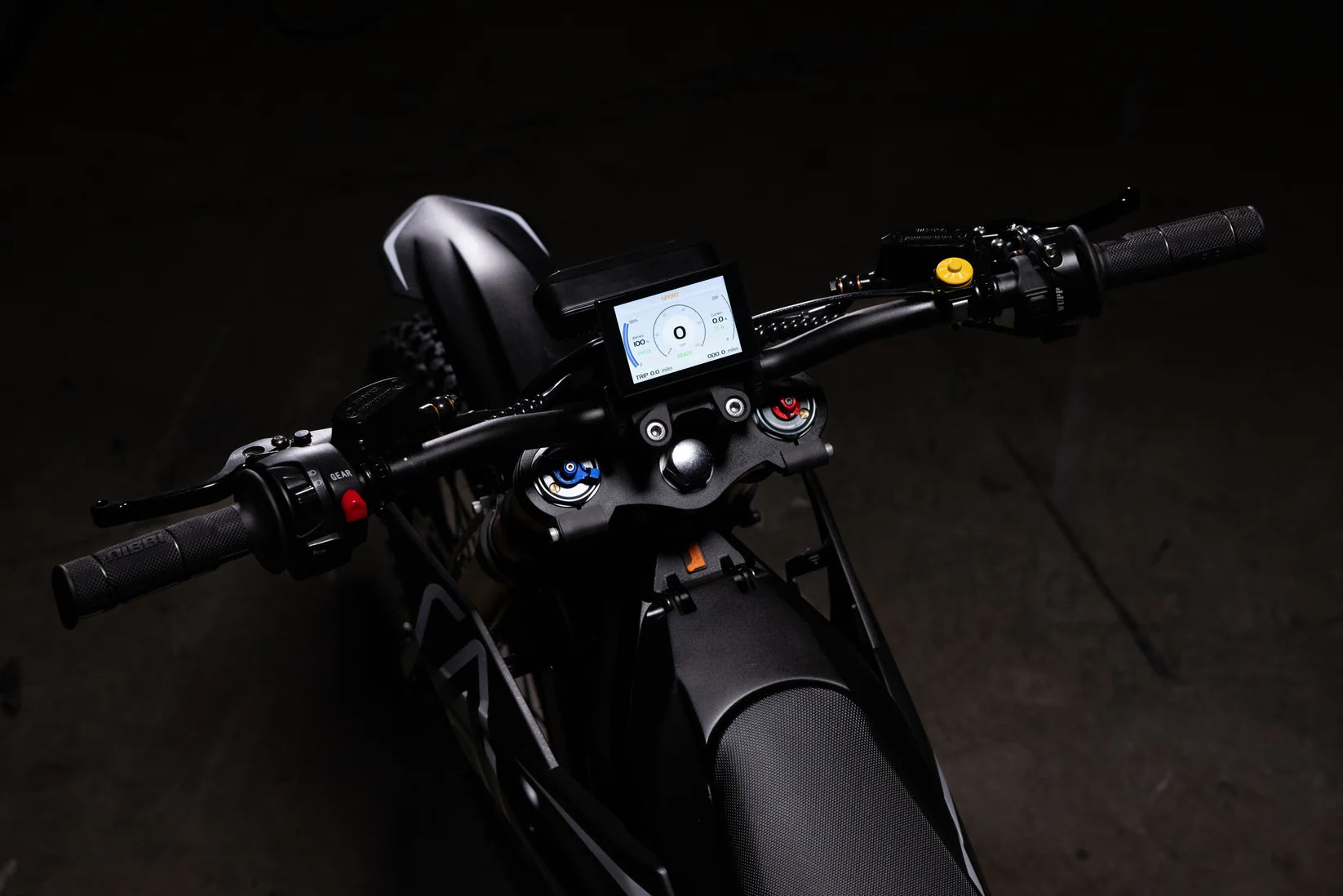

- 3.5" TFT display with NFC feature
- 5 levels of regenerative braking
- Headlight & Taillight (w/brake light) switch
- Heavy duty disc brake
- CST off-road tires
-
CHASSIS
- Weight (with battery): 88 kg
- Wheelbase: 1285 mm
- Front brake disc diameter: 260 mm
- Rear brake disc diameter: 220 mm
- Chain: 428H
- Frame design: Aluminium alloy forging
- Ground clearance: 300m
- Seat height: 840 mm
- Steering head angle: 26 °
- Suspension travel (front): 200 mm
- Suspension travel (rear): 85 mm with linkage
- Rear Wheel travel: 200mm with linkage
- Wheels: Spoked wheels with aluminum rims
Motor
- Max. power: 22 kW
- Torque:72 Nm
- Battery: Lithium-Ion ALTIS PowerPack
- Battery capacity: 35 Ah
- Charging input: AC110V/112V12.5A
- Charging time 20%-100%: 180 min.
- Charging time 20%-80%: 120 min.
- Cooling: Air cooled
- Energy content: 3.402 kWh
- Electric motor: 98V - Hairpin motor
